Audio Interfaces: A Beginner's Guide

An audio interface is the essential hardware bridge that transforms analog audio signals from microphones and instruments into digital data your computer can process, while simultaneously converting digital audio back into high-fidelity analog sound for clear studio monitoring. It serves as the external sonic hub for modern recording setups, replacing inadequate stock computer components with professional preamps, balanced connectivity, high-resolution analog-to-digital converters, and dedicated tactile control knobs to ensure pristine, low-latency tracking and playback.

Table of Contents

• What does an audio interface do?

• Why do you need an audio interface?

• Audio interface vs mixer

• Audio interface vs sound card

• Choosing the right interface

• How to use an audio interface

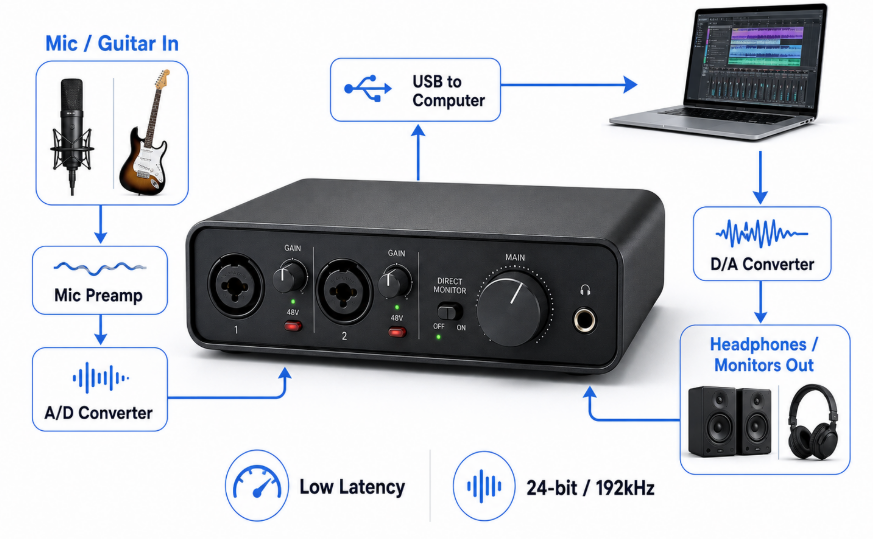

What does an audio interface do?

An audio interface acts as the master translator between the analog physical world of sound waves and the digital processing domain of computers and digital audio workstations. Without this specialized hardware component, a standard computer cannot directly accept professional microphone lines, high-impedance guitar cables, or balanced monitor outputs. The unit systematically handles all signal routing, preamplification, and critical data conversion tasks needed to produce professional-grade sound files.

Every time a musician sings into a microphone, the vocal cords create physical sound pressure waves. The microphone capsule converts these waves into an incredibly weak electrical current known as a mic-level analog signal. The primary task of the hardware interface is to capture this fragile analog voltage, boost it to a usable level using an internal preamplifier, and route it into an analog-to-digital converter. This converter analyzes the continuous electrical wave thousands of times per second, translating the voltage fluctuations into a precise stream of binary code consisting of ones and zeros that recording software can read.

Conversely, the device performs this entire computational process in reverse during playback sessions. When a user hits the play button inside a digital audio workstation, the computer sends digital binary data out through a connection cable to the hardware unit. The internal digital-to-analog converter immediately transforms those digital bits back into a continuous electrical voltage stream. This restored analog signal then flows through physical output jacks into reference monitors or studio headphones, vibrating the speaker cones to reproduce the exact recorded sound waves for the listener's ears.

Beyond basic signal translation, a professional recording hub manages complex monitoring paths, synchronization clocks, and phantom power distribution. It allows engineers to route specific inputs to specific software tracks, control headphone volumes independently from main speaker outputs, and eliminate noticeable hardware lag. By centralizing these complex input and output workflows into one dedicated unit, the device ensures that multi-channel audio production remains organized, clean, and completely synchronized.

Core Architecture Components

Why do you need an audio interface?

You need a dedicated external audio interface because integrated computer hardware cannot process multi-channel inputs, lacks professional balanced connections, and suffers from massive latency lag and high electromagnetic noise floors. While consumer computers feature basic headphone jacks, their internal motherboards are packed with noisy digital components that introduce unwanted hums, clicks, and hisses into recordings. A professional peripheral isolates sensitive audio pathways from computer interference while providing the necessary amplification tools for high-end microphones.

1. Professional Input and Output Connectivity

Standard consumer computers only offer miniature inputs that are completely incompatible with professional studio gear. A dedicated external unit provides rugged XLR inputs for studio microphones, quarter-inch instrument jacks for electric guitars, and balanced line outputs for studio monitors. This expansive physical connectivity ensures that you can plug in any standard piece of studio hardware securely without relying on fragile adapters that degrade signal clarity.

2. Elimination of Monitoring Latency

Latency is the frustrating delay that occurs between the exact moment an instrument is played and the moment the sound actually emerges from the computer speakers. Standard internal computer drivers cause massive lag because they process audio through shared system memory pipelines. A dedicated recording hub utilizes proprietary low-latency drivers to route signals directly from the inputs to the monitoring outputs instantly, allowing performers to hear themselves in real-time without distracting software delays.

3. Clean Studio Power and Preamplification

Professional studio microphones, particularly large-diaphragm condenser models, require stable electrical currents to charge their internal elements and capture sound accurately. An external device supplies clean +48V phantom power directly through the microphone cable while utilizing low-noise preamps to boost delicate signals. This massive gain capability allows users to record quiet sound sources cleanly without introducing a heavy layer of background tape hiss. For creators seeking pristine desktop capture, integrating a Studio-Grade USB RGB Sound Card for PC delivers the specific preamp amplification and high-fidelity output processing required to eliminate onboard system static.

4. Superior Bit Depth and Sampling Resolutions

Internal computer processing chips are optimized for basic video streaming and voice calls, meaning they compress audio data and truncate frequency ranges. Professional external interfaces record at high-resolution sample rates and deep bit depths, preserving the full dynamic range of a performance. This massive digital headroom allows mixing engineers to equalize, compress, and manipulate recorded tracks during post-production without causing digital distortion or artifacting.

Hardware Performance Framework

Audio interface vs mixer

The fundamental difference between an audio interface and a mixer is that an interface focuses on routing individual isolated signals into separate digital tracks inside a computer, whereas a mixer focuses on combining multiple sound sources together into a single unified stereo blend. An interface is designed primarily for detailed studio multi-track recording where every microphone requires its own separate channel in software for individual editing later. A mixer is designed primarily for live sound reinforcement or instant summing, where multiple inputs are blended together into a main stereo output immediately.

1. Independent Multi-Track Routing Capabilities

An interface features dedicated digital routing lines for each individual physical input connector on the hardware chassis. This means if you plug four microphones into a four-channel interface, your recording software will see four distinct, independent audio tracks that can be mixed completely separately. A standard analog mixer takes those same four microphones, blends them together using physical faders on the channel strips, and outputs one combined stereo mix, making it impossible to separate the instruments later during post-production editing.

2. Onboard Signal Processing and Control Surfaces

Mixers are packed with physical knobs, vertical slide faders, equalizer bands, and built-in effects processors on every single channel strip. This gives the operator immediate, tactile control over volume levels, high-frequency cuts, and reverb levels during a live performance or broadcast. Interfaces take a minimalist approach, opting for simple gain knobs and clean internal preamps, leaving the equalization, compression, and effects processing to be handled digitally inside the computer recording software.

3. Primary Operational Environments

Because mixers excel at blending sounds in real-time, they are the preferred tool for live concert venues, conference rooms, public speaking events, and complex podcast setups with multiple active guests. Interfaces are built for controlled environment music creation, voice-over booths, sound design labs, and home recording studios where precision, high-fidelity digital conversion, and individual track separation are far more critical than immediate live blending. For multi-purpose studios that require robust multi-channel capabilities alongside high-resolution conversion, a premium Audio Interface provides the perfect bridge to manage independent tracking and pristine routing.

Architecture Comparison Matrix

Audio interface vs sound card

An audio interface is essentially a highly upgraded, professional-grade external sound card, but traditional sound cards are optimized for consumer media playback while interfaces are engineered specifically for low-latency multi-channel audio production. Consumer sound cards are built directly onto computer motherboards or inserted into internal slots to handle basic sound output for video games, movies, and system alerts. Professional interfaces are external peripherals built from the ground up with balanced circuits, studio-grade preamps, and dedicated physical controls to manage high-end recording tasks.

1. Physical Shielding and Electromagnetic Noise

Traditional internal sound cards sit directly inside the computer tower casing, placing them inches away from high-voltage power supplies, spinning cooling fans, and fast computer processors. This internal environment creates massive amounts of electromagnetic interference, which leaks into the audio circuitry as audible high-frequency whines or low hums. External interfaces sit completely outside the computer housing inside thick metal chassis, completely shielding the sensitive recording components from internal computer noise.

2. Connection Standards and Cable Shielding

Sound cards rely almost exclusively on unbalanced 3.5mm miniature jacks, which are highly susceptible to picking up radio frequency interference over long cable runs and break easily under pressure. Interfaces utilize professional balanced XLR and TRS connection standards that cancel out external cable noise automatically over long distances. These professional locking connectors secure thick studio cables tightly, preventing accidental disconnections during critical recording takes.

3. Device Driver Efficiency and Stability

Standard internal sound cards use generic operating system audio drivers that queue sound data behind other system tasks, creating massive digital buffering delays during recording. Interfaces come equipped with custom-written ASIO or Core Audio drivers designed to bypass the standard operating system layers completely. This ultra-fast data pipeline ensures that audio information moves between the hardware and software with minimal processing delay, preventing system crashes during heavy workloads.

Audio Engineering Differentiation

Choosing the right interface

Choosing the right audio interface requires matching the specific physical input and output counts of the device to your recording equipment while ensuring compatibility with your computer connection ports. A solo podcaster or acoustic guitar player only needs a simple unit with one or two inputs to capture clean audio. A full band or a producer connecting multiple external synthesizers and drum machines will require an expanded multi-channel system with numerous line inputs and optical expansion options.

1. Evaluating Input Types and Total Channel Counts

Before making a purchase, you must calculate exactly how many microphones and instruments you plan to record simultaneously. If you are recording a singer-songwriter who plays acoustic guitar while singing, you need a minimum of two inputs: one XLR input for the vocal microphone and one instrument input for the guitar pickup. For tracking a full acoustic drum kit, you will need a large multi-channel unit containing eight distinct microphone preamps to capture every piece of the drum set clearly.

2. Assessing Computer Connectivity Protocols

Modern hardware interfaces connect to host computers using several distinct cable standards, including USB Type-A, USB Type-C, Thunderbolt, and occasionally PCIe cards. USB connections are widely compatible across almost all consumer laptops and desktop computers, making them perfect for mobile setups and home studios. Thunderbolt connections offer faster data transfer speeds and lower latency, which is highly beneficial for complex commercial studios running hundreds of active software plugins simultaneously.

3. Considering Form Factor and Portability Needs

Desktop interfaces are designed to sit within arm's reach on a studio desk, featuring top-facing or front-facing control knobs and visible LED level meters for quick adjustments. Rackmount interfaces are wider units designed to be bolted into permanent studio gear racks, offering massive connectivity options on the rear panel for stationary installations. If you plan to record interviews on location or travel frequently, prioritizing a small, bus-powered desktop unit will save space and eliminate the need for an external power brick.

Selection Evaluation Matrix

How to use an audio interface

To properly use an audio interface, you must first connect it to your computer via USB or Thunderbolt, install the manufacturer's dedicated low-latency drivers, and configure your digital audio workstation to recognize the unit as the primary input and output device. Skipping driver installation or failing to adjust software buffer sizes will result in poor performance, system crashes, or extreme latency lag. Once the software environment is configured, physical equipment can be plugged into the front panels safely to begin the tracking process.

1. Driver Installation and Initial Hardware Connection

Before plugging the hardware unit into a Windows computer, always visit the official manufacturer website to download and install the latest proprietary ASIO driver package. Mac computers generally utilize native Core Audio drivers, meaning many devices are plug-and-play, though advanced units still require control software installations. Once the drivers are successfully installed, connect the unit directly to a high-speed computer port using the included shielded data cable, avoiding unpowered external USB hubs which can starve the device of stable power.

2. Software Audio Routing Settings

Launch your digital audio workstation and navigate directly to the system preferences or audio settings menu. Locate the hardware configuration section and change the input device and output device options from your computer's internal microphone and speakers to your newly connected external hardware unit. Inside the DAW, create a new audio track and manually assign its input source line to match the physical channel number on the front of the hardware where your instrument is connected.

3. Gain Staging and Monitoring Optimization

Connect your studio headphones or powered monitors to the dedicated output jacks on the device, ensuring the main volume knob is turned all the way down initially to protect your hearing. Speak into your microphone or play your instrument while turning up the physical input gain knob on the device, watching the LED indicator lights closely to make sure the signal never hits the red zone, which causes digital clipping. Put on your headphones, adjust the direct monitor knob to find a comfortable balance between your live instrument input and the computer playback, and begin recording.

Operational Checklist: Safe Startup and Shutdown Routine

• Step 1: Always turn the main monitor volume and headphone volume knobs completely down to zero before powering on the device or plugging in any microphones.

• Step 2: Insert your microphone cables securely into the XLR slots until they click into place before turning on the +48V phantom power switch.

• Step 3: When finishing a session, turn off the +48V phantom power button first and wait ten seconds for the electrical current to drain completely before unplugging your condenser microphones.

• Step 4: Clean the physical control knobs regularly with a dry micro-fiber cloth and cover the unit when not in use to prevent dust from settling inside the analog volume potentiometers.

Summary

Investing in a dedicated external hardware audio converter is the single most important step any creator can take to elevate their sound production quality above amateur levels. By taking over the difficult tasks of analog-to-digital signal conversion, providing clean amplification via internal microphone preamps, and offering stable low-latency processing, these devices ensure your recordings remain pristine and accurate. Whether you are tracking a solo podcast, recording an acoustic guitar, or mixing a complex multi-track musical project, matching the right input counts, connection protocols, and driver frameworks to your workflow will provide a reliable studio foundation for years to come.
